CSF Mega Water/Air Bar & Plate Intercooler Core - 12in L x 12in H x 6in W

What you get here is a CSF Mega Air-to-Water Bar & Plate Intercooler Core, measuring 12 inches long, 12 inches high, and 6 inches deep. This is a heavy-duty core designed for custom high-performance intercooler builds, capable of handling up to 2000 wheel horsepower. It's built to be reliable even in extreme boost situations, with each core being pressure tested at 120psi before it leaves the factory.

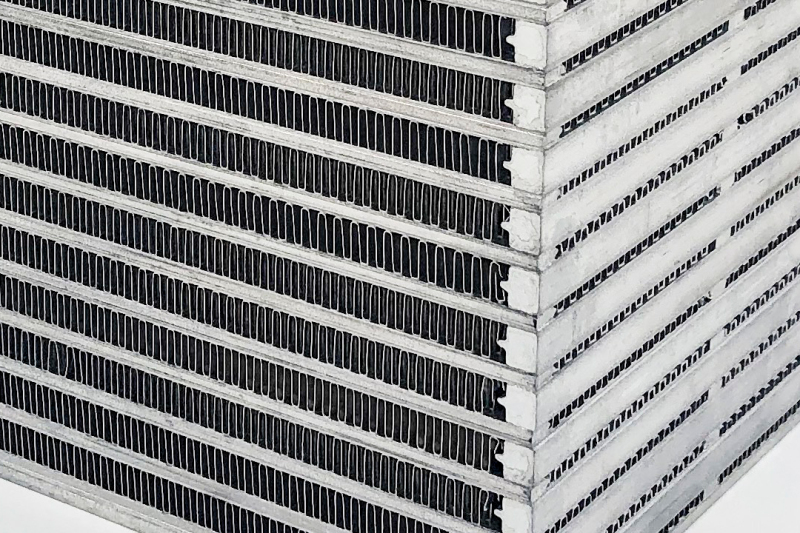

CSF builds these cores by hand in a clean room environment, using jigs and fixtures to ensure they are perfectly straight and ready for welding. They use a multi-louvered, high-precision staggered fin design on both the ambient and pressure sides of the core. This design is key to achieving the best possible heat transfer, which is crucial for keeping your intake air temperatures down. The cores are also batch brazed in CSF's digital vacuum brazing ovens and individually boxed to protect them during shipping.

This intercooler core is a solid choice if you're building a custom setup and need a robust component that can handle serious power. Because it's a core only, you'll need to plan for the surrounding plumbing and mounting to integrate it into your specific system.
