What is the recommended mounting height for this lightbar?

For optimal illumination, Hella recommends a mounting height between 0.50 and 1.50 meters. This distributes the light over a large area and evenly into the workspace, improving working conditions at night.

What is the light output of this lightbar?

The LBX 220 LED has a light output of 1,000 lumens, extending to the powerful LBX 720 LED with an effective light output of 5,500 lumens.

What kind of beam pattern does this lightbar have?

The longer LBX 540 and LBX 720 versions offer a combination of wide-beam lenses for the near-field area and narrow-beam lenses in the center for long-range illumination. This combination is ideal for large-area illumination in front of the vehicle.

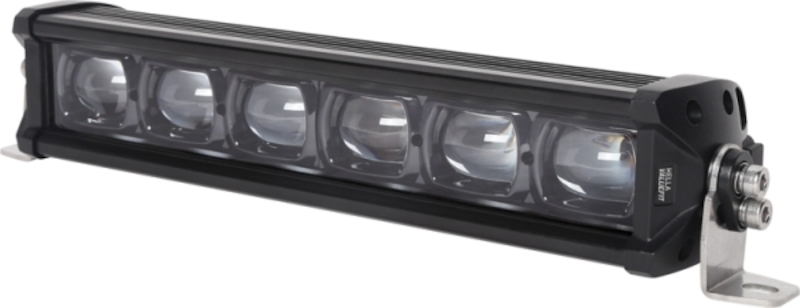

Hella LBX Series 14in LED Lightbar 360001002

Name: Hella LBX Series Lightbar 14in LED MV CR DT
Brand: Hella
SKU: hella-hella-lbx-series-lightbar-14in-led-mv-cr-dt-t14-392732
Price: 187.83 USD
Availability: BackOrder

Hella LBX Series Lightbar 14in LED MV CR DT

$187.83

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

14-inch LED worklight for homogeneous near and far-field illumination.

Key Features

LED lightbar — provides bright, efficient illumination
Aluminum housing — lightweight and strong
Cooling fins — help dissipate heat
Homogeneous illumination — for near and far-field use

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

The new light bar series includes four worklights in an elongated design in different lengths and light intensities. Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs. The innovative lens technology of the LBX Lightbars creates homogeneous illumination for both near-field and far-field illumination. The light intensity starts with the LBX 220 LED at 1,000 lumens and extends to the powerful LBX 720 LED with an effective light output of 5,500 lumens. For optimal illumination, a low mounting height of between 0.50 and 1.50 metres is recommended. This distributes the light over a large area and evenly into the workspace, significantly improving working conditions at night. The longer LBX 540 and LBX 720 versions offer the combination of wide-beam lenses for the near-field area and narrow-beam lenses in the centre for long-range illumination. The perfect combination for large-area illumination in front of the vehicle.The new light bar series includes four worklights in an elongated design in different lengths and light intensities. Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs. The innovative lens technology of the light bars creates homogeneous illumination for both near-field and far-field illumination.
