Will this fit my vehicle without modifications?

It is a plug-and-play replacement for any vehicle with an H6054 (5x7 inch) rectangular sealed beam housing. It uses the same 3-contact lug connector. In some vehicles, a wiring harness adapter may be needed if the connector orientation does not match.

Is this LED headlight legal for road use?

Yes. The Philips H6054 LED Integral Beam is DOT compliant and projects a sharp cut-off line to prevent glare for oncoming drivers.

How much brighter is this compared to the original sealed beam?

The 6000K LED output is noticeably whiter and brighter than a standard halogen sealed beam, which typically produces a yellowish light around 3200K. The improvement is visible both in color and in how far the beam projects down the road.

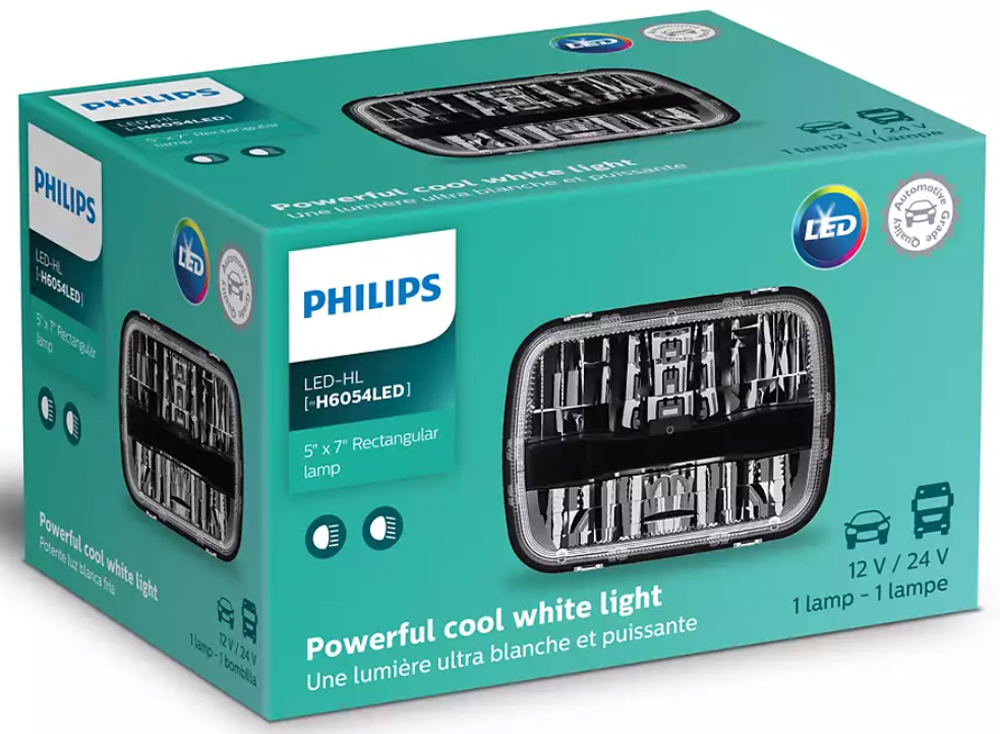

Philips H6054 LED Integral Beam Headlight

Name: Philips H6054 LED Integral Beam Headlight
Brand: Philips
SKU: PHLH6054LED
Price: 151.96 USD
Availability: InStock

$151.96

Usually ships the next business day

LED replacement for H6054 sealed beam headlights. 6000K cool white light, DOT compliant, plug and play for 5x7 inch rectangular applications.

Key Features

Direct plug-and-play replacement for H6054 (5x7 inch) rectangular sealed beam headlights.
6000K cool white light output — significantly whiter and brighter than halogen.
Compatible with 12V to 36V electrical systems.
14W on low beam and 28W on high beam — lower power draw than halogen sealed beams.
DOT compliant with a sharp beam cut-off for legal on-road use.
3-contact lug connector matches original sealed beam wiring.

Fits vehicles with H6054 rectangular sealed beam headlight housings. Verify your sealed beam size before ordering. A wiring adapter may be needed if connector slots do not align.

Secure CheckoutFast Shipping631-982-0042

Product Details

Older trucks and SUVs with rectangular 5x7 inch sealed beam headlights can be tough to see out of at night. Philips H6054 LED Integral Beam is a direct plug-and-play replacement that swaps in where the old halogen sealed beam sat, giving you a major jump in light output and color temperature.

It produces 6000K cool white light, which is significantly whiter and brighter than the yellowish output of a conventional halogen sealed beam. Operating range is 12 to 36 volts, making it compatible with both standard 12V automotive systems and 24V applications. On the electrical side, it draws 14 watts on low beam and 28 watts on high beam — a fraction of what the old halogen unit consumed. It is DOT compliant, so it meets legal requirements for on-road use, and projects a sharp cut-off line to avoid blinding oncoming traffic.

Installation is plug and play for most vehicles — the LED unit drops into the same housing and uses the same 3-contact lug connector as the original sealed beam. In some cases, a wiring harness adapter may be needed if the connector slots do not line up. No bulb changes down the road, since LED units have a significantly longer lifespan than halogen sealed beams.
