Specifications
- Brand
- Vibrant
- Part #
- 12840
- UPC
- 690092153335

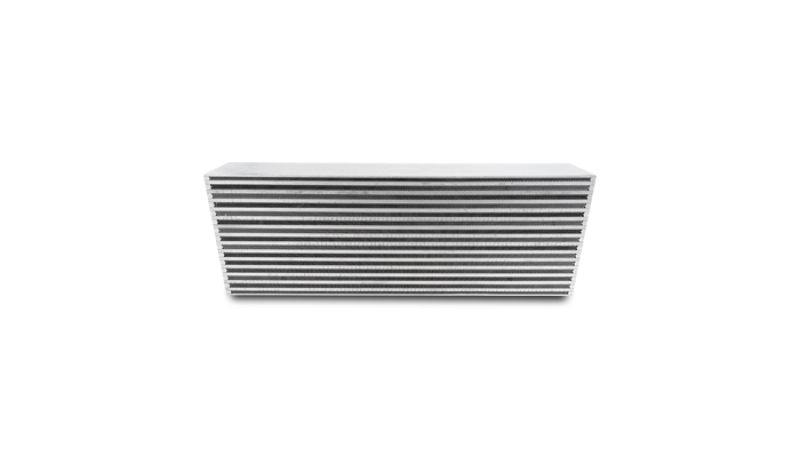

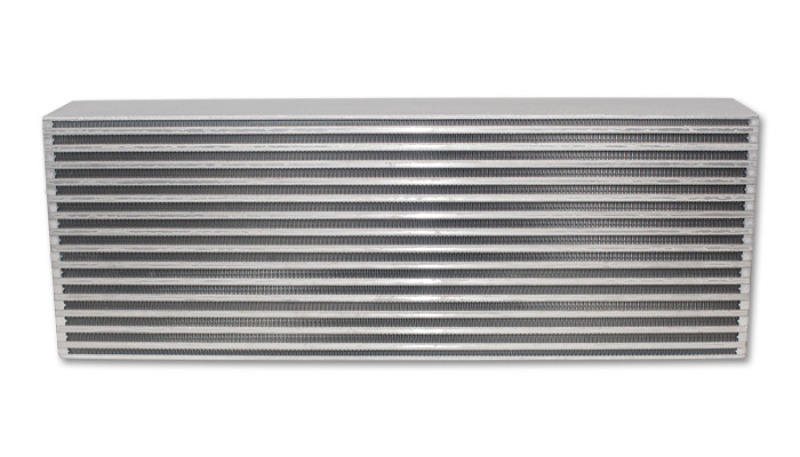

Vibrant Intercooler Core - 27.5in x 9.85in x 4.5in
$399.99
Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.
Vibrant Intercooler Core - 27.5in x 9.85in x 4.5in. Bar and plate construction maximizes cooling efficiency for high-horsepower engines.
Key Features
- This product is an intercooler core measuring 27.5 inches wide, 9.85 inches tall, and 4.5 inches thick.
- It features a bar and plate construction with 25% increased fin density.
- A louvered fin design on the ambient path maximizes the core's surface area.
- An offset fin design on the charge path helps minimize pressure loss.
- This intercooler core is capable of handling race engines up to 1300+ horsepower.
- It is made from 6061 aluminum and is cleaned and prepared for welding.
⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more
Product Details
This listing is for a Vibrant Performance Intercooler Core, measuring 27.5 inches wide, 9.85 inches tall, and 4.5 inches thick. It's constructed from aluminum and is ready to be welded into your custom setup right out of the box. This core is designed for high-horsepower gasoline or diesel race engines, capable of supporting over 1300 horsepower.
The core features a bar and plate design with a unique louvered fin on the outside for maximum surface area and an offset fin on the inside to minimize pressure loss. This combination helps deliver significantly cooler and denser air to your engine, which is crucial for performance in demanding race applications. Each core is pressure tested to ensure it's leak-free.
Please note that this intercooler core is not CARB approved and cannot be shipped to California. It is made from 6061 aluminum.
Specifications
- Brand
- Vibrant
- Manufacturer Part #
- 12840
- UPC
- 690092153335
Frequently Asked Questions
