Specifications
- Brand
- Vibrant
- Part #
- 12136
- UPC
- 690092172503

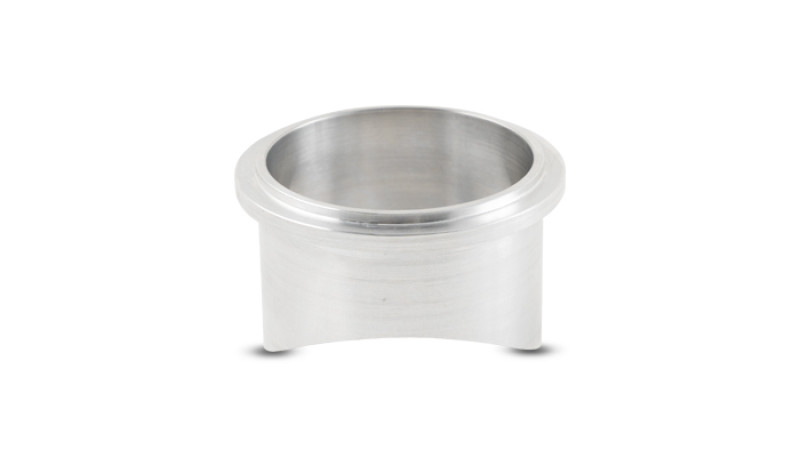

Vibrant Tial 50MM BOV Weld Flange Aluminum - 4.00in Tube
$36.99
Vibrant Performance aluminum weld flange for Tial 50mm blow-off valves. Fits 4.00" OD tubing.
Key Features
- Fits 4.00 inch outside diameter tubing.
- Designed for Tial 50mm blow-off valves.
- Constructed from aluminum.
- Features a 47.7mm port ID.
- Includes a 2mm centering ring height for alignment.
- Flange OD is 59.5mm.
Product Details
Vibrant Performance is known for making solid fabrication components for performance vehicles. This particular part is an aluminum weld flange designed specifically for the Tial 50mm blow-off valve. It's made to be welded onto a 4.00-inch outside diameter tube, giving you a secure mounting point for your blow-off valve when you're building or modifying a turbocharger system.
This flange is constructed from aluminum and features a 47.7mm port ID, matching the requirements for the Tial 50mm BOV. The design includes a centering ring with a 2mm height, helping to ensure proper alignment during installation. With a 59.5mm flange OD and a 3.3mm apex width, it's built to create a strong seal when welded.
Specifications
- Brand
- Vibrant
- Manufacturer Part #
- 12136
- UPC
- 690092172503
