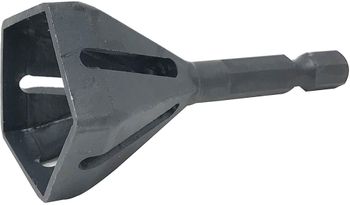

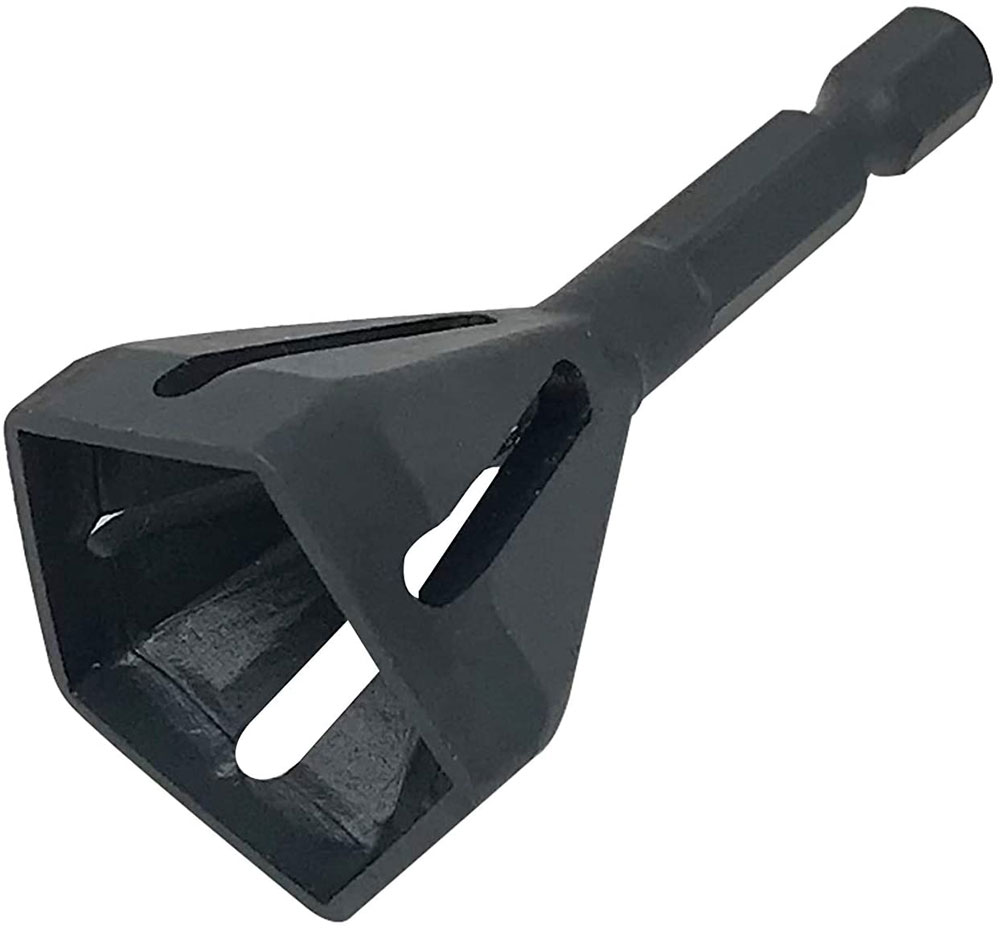

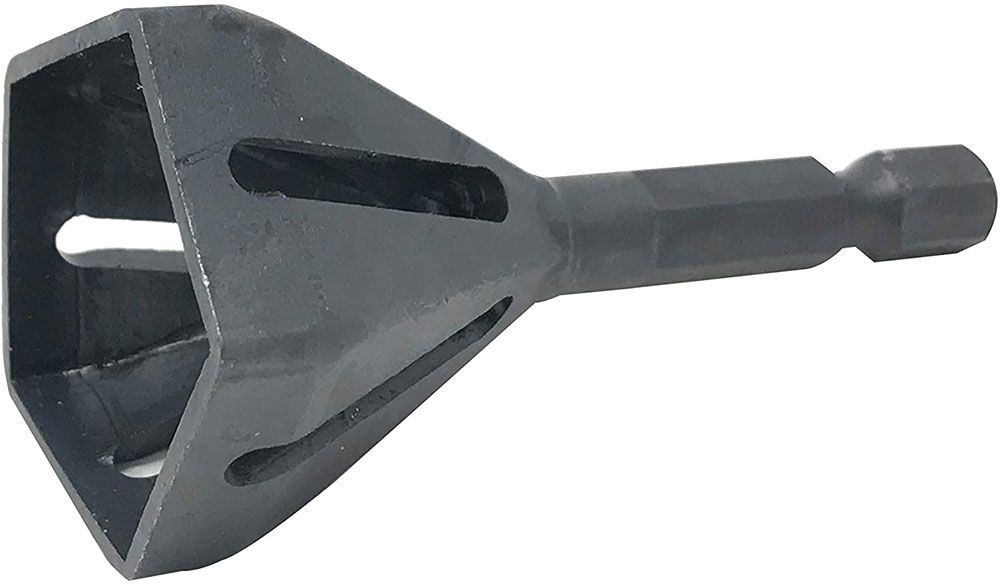

CTA E-Z Chamfer

		Tweet

5 Point design
Quick and clean deburring
5/16 - 7/8" Range (8-22mm)
Single M2-HSS Construction
Perfect for starting a nut on a bolt or
threaded bar, a button die or die nut
on rod and a leading edge on timber dowel
Removes burrs and ridges from bolts,
pipe, threaded rod, bar and dowels
Threads and burrs are sheared off creating the
perfect chamfer for starting a nut or threading die
Can be used on metals including:
- Mild steel - U.S. Grade 2 - Metric Grade 4.8
- Hard steel - U.S. Grade 5 - Metric Grade 8.8
- Very hard steel - U.S. Grade 8 - Metric Grade 10.9
- Stainless steel - 300 Series
- Super hard steel - U.S. Grade ASTM-A574 - Metric Grade 12.9

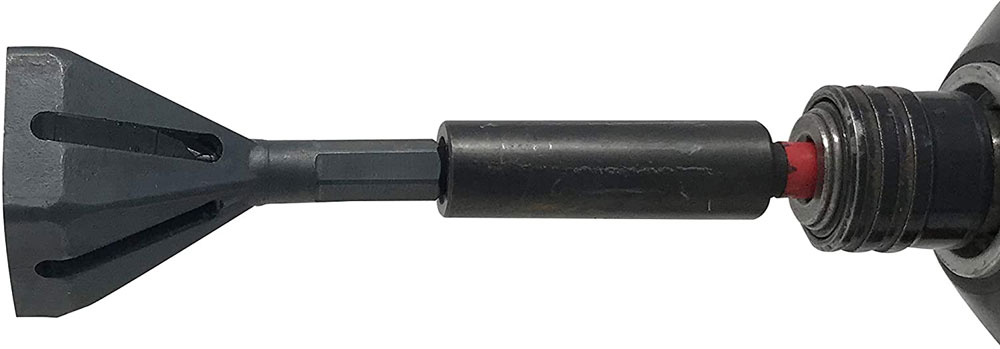

Use a slow drill speed with medium pressure
on most materials (Harder materials will
require a higher feed pressure)
Only necessary to chamfer the first 1 to 3 threads
Recommended RPM according to size:
- 8-12mm (800RPM)
- 12-18mm (600RPM)
- 18-22mm (400RPM)

$50.95
